LTC6992-3

Voltage-Controlled PWM

LTC6992-3 Features

* n Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input n Four Available Options Define Duty Cycle Limits n Minimum Duty Cycle at 0% or 5% n Maximum Duty Cycle at 95% or 100% n Frequency Range: 3.81Hz to 1MHz n Configured with 1 to 3 Resistors n

LTC6992-3 General Description

The LTC®6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability. The LTC6992 is part of the TimerBlox® family of versatile silicon timing devices. A single resistor, RSET, programs the LTC6992’s internal master oscillator frequency. The ou.

LTC6992-3 Datasheet (1.32 MB)

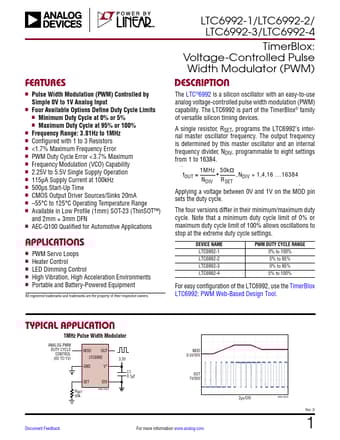

Preview of LTC6992-3 PDF

Datasheet Details

Part number:

LTC6992-3

Manufacturer:

Analog Devices ↗

File Size:

1.32 MB

Description:

Voltage-controlled pwm.
