MAX202E - 5V RS-232 Transceivers

Name: MAX202E
SKU: MAX202E-1591125

Analog Devices

📥 Download Datasheet

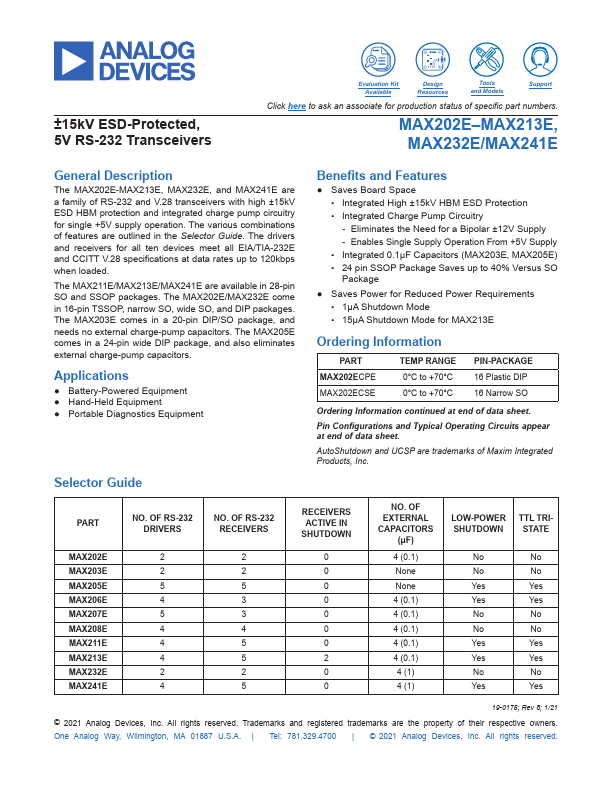

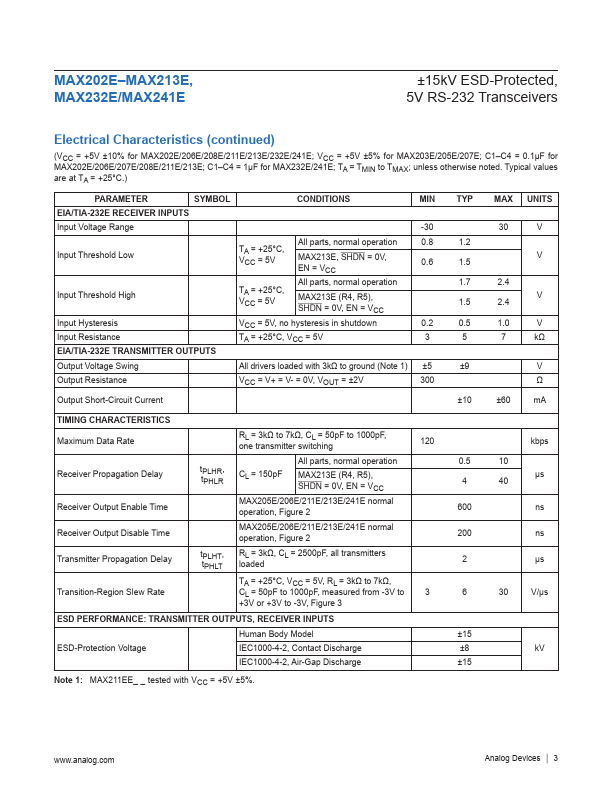

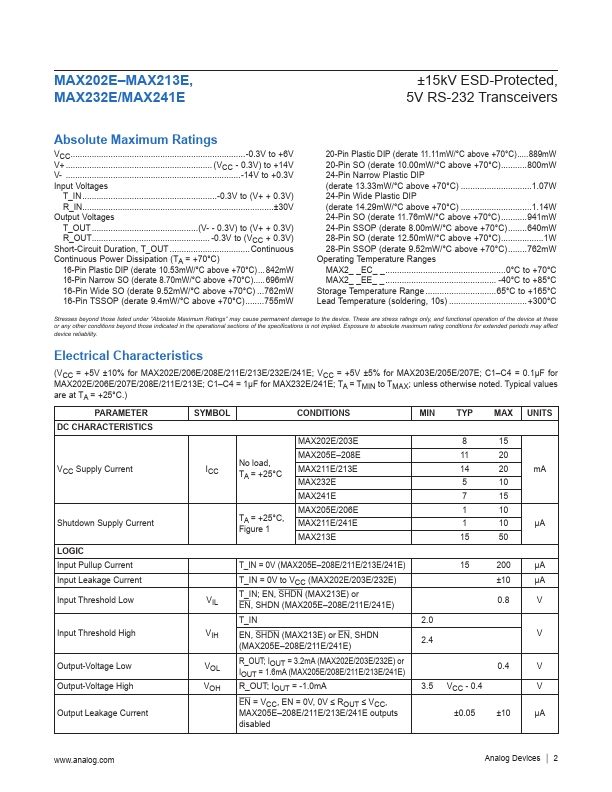

MAX202E Datasheet Preview — Preview of MAX202E PDF

Datasheet Details

Part number	MAX202E
Manufacturer	Analog Devices
File Size	1.73 MB
Description	5V RS-232 Transceivers
Datasheet	MAX202E-AnalogDevices.pdf

MAX202E Product details

Description

The MAX202E-MAX213E, MAX232E, and MAX241E are a family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation.

Features

are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX211E/MAX213E/MAX241E are available in 28-pin SO and SSOP packages. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external ch.
