MAX22217

Quad Smart Serial-Controlled Solenoid and Motor Driver

MAX22217 Features

* Four Serial Controlled 36V Half Bridges

* 1.7A DC (TA = 25°C) and 3.2A Full-Scale Current Capability (MAX22216)

* 0.55A DC (TA = 25°C) and 1A Full-Scale Current Capability (MAX22217)

* Low RON for High Efficiency

* High Flexibility:

* Independent Channel Setting

MAX22217 General Description

The MAX22216/MAX22217 integrate four programmable 36V half-bridges. It is primarily intended to drive inductive loads such as on-off solenoid valves, DC motors, proportional valves, bi-stable valves, relays, etc. The MAX22216 is capable of up to 3.2AFS per half-bridge, whereas the MAX22217 is capabl.

MAX22217 Datasheet (642.32 KB)

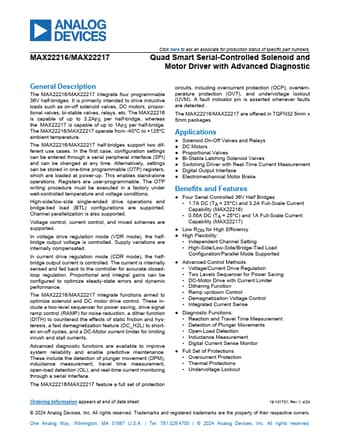

Preview of MAX22217 PDF
