MAX222

5-V DUAL RS-232 LINE DRIVER/RECEIVER

MAX222 General Description

ordering information The MAX222 consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). This device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an as.

MAX222 Datasheet (852.65 KB)

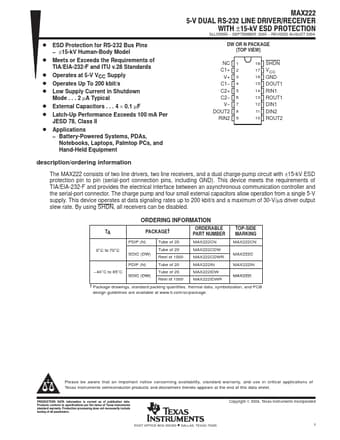

Preview of MAX222 PDF

Datasheet Details

Part number:

MAX222

Manufacturer:

Texas Instruments ↗

File Size:

852.65 KB

Description:

5-v dual rs-232 line driver/receiver.
D ESD Protection for RS-232 Bus Pins

* ±15-kV Human-Body Model D Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards D O.
