MAX25203D

Dual-Phase Synchronous Boost Controllers

MAX25203D Features

* include cycle-by-cycle current limit and thermal shutdown. These devices operate over the -40°C to +125°C automotive temperature range. Applications

* Infotainment Systems

* Automotive Audio Amplifier True Shutdown is a trademark of Maxim Integrated Products, Inc. Dual-Phase Synchro

MAX25203D General Description

The MAX25203D/MAX25203E automotive dual-phase synchronous boost controllers enable infotainment systems to stay in regulation during cold-crank or startstop operation all the way down to a battery input of 1.8V. They can also be used to generate backlight voltage and Class D audio amplifier voltages.

MAX25203D Datasheet (297.61 KB)

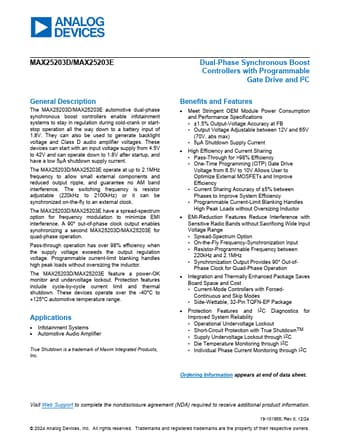

Preview of MAX25203D PDF

Datasheet Details

Part number:

MAX25203D

Manufacturer:

Analog Devices ↗

File Size:

297.61 KB

Description:

Dual-phase synchronous boost controllers.
