MAX25262 - 65V 2A Mini Buck Converter

MAX25262 Description

Automotive, 65V, 2A/3A Mini Buck Converters MAX25262/MAX25263 General .
The MAX25262/MAX25263 are small, synchronous buck converters with integrated high-side and low-side switches.

MAX25262 Features

* Meets Stringent Original Equipment Manufacturer (OEM) Module Power Consumption and Performance Specifications
* 2A/3A Output-Current Capability
* 3.5μA Supply Current in Standby Mode
* Enables Double Battery Operation
* Wide Input Supply Range from 3.5V to 6

MAX25262 Applications

* The voltage quality can be monitored by observing the PGOOD signal. The device offers two fixed 5V and 3.3V output voltages. In addition, the device can be configured for 1V to 20V output voltages using an external resistordivider. The frequency is internally fixed at 2.1MHz, which allows for small

📥 Download Datasheet

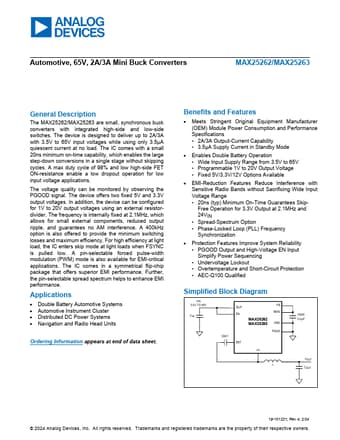

Preview of MAX25262 PDF
datasheet Preview Page 2 datasheet Preview Page 3
