MAX25252 Datasheet - Analog Devices

MAX25252 Five-Output ASIL B PMIC

The MAX25252 is a high-efficiency, five-output ASIL B PMIC with three DC-DC converters, and two high-PSRR LDOs, with OV/UV monitoring on all outputs. OUT1 is a 1A high-voltage, synchronous step-down converter operating from power over coax. OUT2 and OUT3 are low voltage synchronous step-down convert.

MAX25252 Features

* temperature monitoring with external NTC. The IC accurately measures PCB temperature and flags the temperature warning through RESET. The device features a 2.1MHz fixed-frequency PWM mode for better noise immunity and load transient response. The 2.1MHz frequency operation allows for the use of all

MAX25252-AnalogDevices.pdf

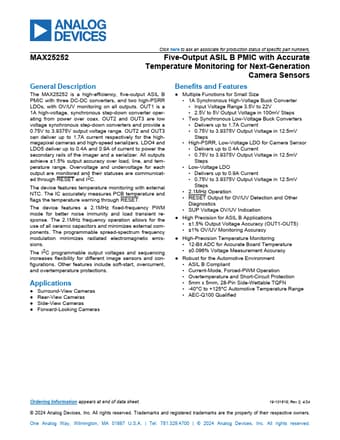

Preview of MAX25252 PDF
MAX25252 Datasheet Preview Page 2 MAX25252 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX25252

Manufacturer:

Analog Devices ↗

File Size:

144.38 KB

Description:

Five-output asil b pmic.
