MAX2510 Datasheet, Transceiver, Maxim

MAX2510 Features

  • Transceiver o +2.7V to +5.5V Single-Supply Operation o Complete Receive Path: 600MHz (max) 1st IF to 30MHz (max) 2nd IF o Unique, Wide-Dynamic-Range Downconverter Mixer Offers -8dBm IIP3, 11dB NF o

PDF File Details

Part number:

MAX2510

Manufacturer:

Maxim

File Size:

158.46kb

Download:

📄 Datasheet

Description:

Low-voltage if transceiver. The MAX2510 is a highly integrated IF transceiver for digital wireless applications. It operates from a +2.7V to +5.5V supply voltage

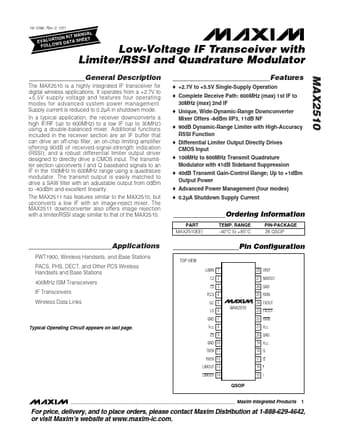

Datasheet Preview: MAX2510 📥 Download PDF (158.46kb)
Page 2 of MAX2510 Page 3 of MAX2510

MAX2510 Application

  • Applications It operates from a +2.7V to +5.5V supply voltage and features four operating modes for advanced system power management. Supply curren
