MAX49925 Datasheet, Amplifier, Analog Devices

MAX49925 Features

  • Amplifier
  • Fast, 500ns PWM Edge Recovery from >500V/µs PWM Edges
  • 140dB DC CMRR Rejection
  • -40V to +76V Input Voltage Range
  • -42V to +80V Protective Immunity <

PDF File Details

Part number:

MAX49925

Manufacturer:

Analog Devices ↗

File Size:

1.09MB

Download:

📄 Datasheet

Description:

Current-sense amplifier. The MAX49925 is a bidirectional current-sense amplifier (CSA) with an input common-mode range that extends from -40V to +76V, making

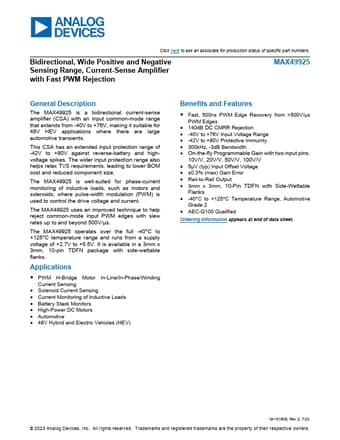

Datasheet Preview: MAX49925 📥 Download PDF (1.09MB)
Page 2 of MAX49925 Page 3 of MAX49925

MAX49925 Application

  • Applications where there are large automotive transients. This CSA has an extended input protection range of -42V to +80V against reverse-battery an
