MAX4990E High-Voltage +-15kV ESD-Protected Electroluminescent Lamp Driver

MAX4990E Description

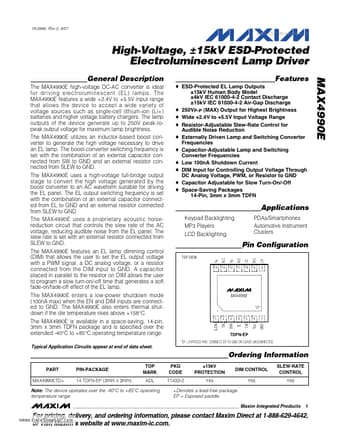

19-0886; Rev 0; 8/07 www.DataSheet4U.com High-Voltage, ±15kV ESD-Protected Electroluminescent Lamp Driver General .
The MAX4990E high-voltage DC-AC converter is ideal for driving electroluminescent (EL) lamps.

MAX4990E Features

* a wide +2.4V to +5.5V input range that allows the device to accept a wide variety of voltage sources such as single-cell lithium-ion (Li+) batteries and higher voltage battery chargers. The lamp outputs of the device generate up to 250V peak-topeak output voltage for maximum lamp brightness. The MAX

MAX4990E Applications

* Keypad Backlighting MP3 Players LCD Backlighting PDAs/Smartphones Automotive Instrument Clusters Pin Configuration N. C. N. C. N. C. 9
* EP 2 EN 3 DIM 4 EL 5 SW 6 VDD 7 GND CS LX 8 TOP VIEW VA 14 13 12 VB 11 10 MAX4990E + 1 SLEW TDFN-EP
* EP = EXPOSED PAD. CONNECT EP TO GND OR LEAVE UNC
