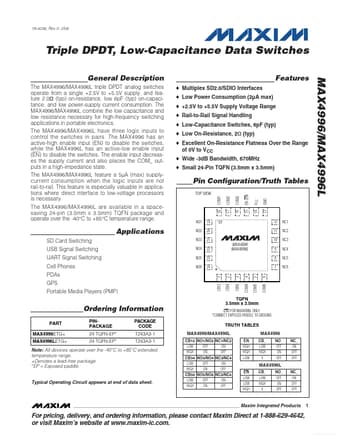

MAX4996 Datasheet, Switches, Maxim

✔ MAX4996 Features

MAX4996/MAX4996L Pin Configuration/Truth Tables EN (EN) TOP VIEW COM1 COM2 COM3 18 17 16 15 14 13 GND VCC NO1 NO2 NO3 NO4 NO5 NO6 19 20 21 22 23 24
EP 12

✔ MAX4996 Application

in portable electronics. The MAX4996/MAX4996L have three logic inputs to control the switches in pairs. The

PDF File Details

Maxim manufacturer logo

Part number:

MAX4996

Manufacturer:

Maxim

File Size:

221.22kb

Download:

📄 Datasheet

Description:

Low-capacitance data switches. The MAX4996/MAX4996L triple DPDT analog switches operate from a single +2.5V to +5.5V supply, and feature 2.0Ω (typ) on-resistance, l
