MAX49918 Datasheet, Amplifier, Analog Devices

MAX49918 Features

  • Amplifier bidirectional current sensing and is offered in a 3mm x 3mm, 10-pin TDFN package. Applications
  • Monitoring Distinct Current Levels
  • Using the Same Current-Sense Resist

PDF File Details

Part number:

MAX49918

Manufacturer:

Analog Devices ↗

File Size:

1.78MB

Download:

📄 Datasheet

Description:

Current-sense amplifier. The MAX49918 is a high-precision current-sense amplifier (CSA) with an I2C programmable gain option from 10V/V to 200V/V in 8 steps.

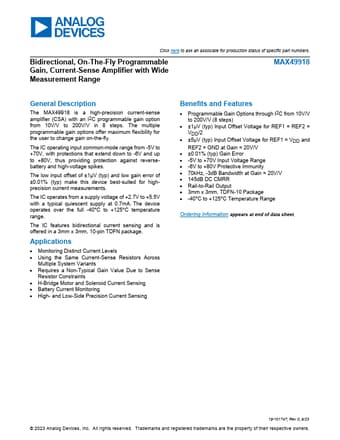

Datasheet Preview: MAX49918 📥 Download PDF (1.78MB)
Page 2 of MAX49918 Page 3 of MAX49918

MAX49918 Application

  • Applications
  • Monitoring Distinct Current Levels
  • Using the Same Current-Sense Resistors Across Multiple System Variants
