MAX96752 Datasheet - Analog Devices

MAX96752 GMSL2 Deserializer

The MAX96752 deserializers convert a single- or dual-link GMSL™ serial input to single or dual OLDI. They also send and receive side-channel and peripheral control data, enabling full-duplex, single-wire transmission of video and bidirectional data. The OLDI output can be configured as single-port.

MAX96752 Features

* 1 x 4, 2 x 4, or 1 x 8 OLDI Output Lane Configurations

* 3Gbps or 6Gbps Forward Link Rates for System and Power Flexibility

* Full-Duplex Capability Over a Single Wire

* Supports Up to 300MHz PCLK

* Supports Video Replication and Dual-View Splitting for Driving Two Displays

MAX96752 Datasheet (1.06 MB)

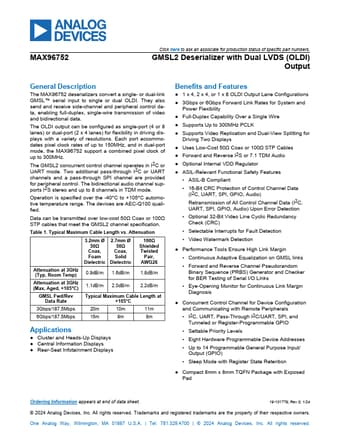

Preview of MAX96752 PDF

Datasheet Details

Part number:

MAX96752

Manufacturer:

Analog Devices ↗

File Size:

1.06 MB

Description:

Gmsl2 deserializer.
