AIC1686

Off-Line Power Supply Protection IC with Shunt Regulator

AIC1686 Features

* Overvoltage Protection for 3.3V, 5V, and 12V Outputs. Power Good Signal for 5V Output. Remote ON/OFF Input. Uncommitted Protection Input. 5V Regulator with 25mA Source Current. 2.5V Precision Shunt Regulator. 8V to 16V Operation. Low Power Consumption. DESCRIPTION The AIC1686 is a supervisory and p

AIC1686 General Description

The AIC1686 is a supervisory and protection IC intended for use in off-line, multiple output power supplies. It consists of protection circuitry, power good indicator, remote ON/OFF control, and precision shunt regulator. The overvoltage protection (OVP) function is for 3.3V, 5V, and 12V outputs. In.

AIC1686 Datasheet (243.82 KB)

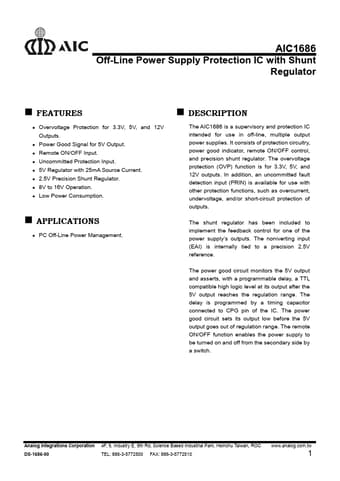

Preview of AIC1686 PDF

Datasheet Details

Part number:

AIC1686

Manufacturer:

Analog Intergrations Corporation

File Size:

243.82 KB

Description:

Off-line power supply protection ic with shunt regulator.
