AIC2822 Datasheet, converter equivalent, Analog Intergrations Corporation

AIC2822 Features

• Converter
• 2A Continuous Output Current
• Wide 4.75V to 23V Operating Input Range
• Ouput Adjustable from 0.925V to12V
• Up to 95% Efficiency
• Low Rds(on

PDF File Details

Part number:

AIC2822

Manufacturer:

Analog Intergrations Corporation

File Size:

450.00kb

Download:

📄 Datasheet

Description:

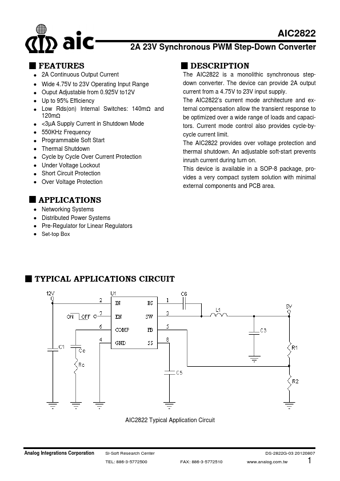

2a 23v synchronous pwm step-down converter. The AIC2822 is a monolithic synchronous stepdown converter. The device can provide 2A output current from a 4.75V to 23V input supply

AIC2822 Application

• Applications
• Networking Systems
• Distributed Power Systems
• Pre-Regulator for Linear Regulators
• Set-top Box <
