AIC2823 Datasheet - Analog Intergrations Corporation

3A 23V Synchronous PWM Step-Down Converter

AIC2823 Features

* 3A Continuous Output Current

* Wide 4.75V to 23V Operating Input Range

* Ouput Adjustable from 0.925V to 12V (VREF=0.925V Version)

* Ouput Adjustable from 0.8V to 12V (VREF=0.8V Version)

* Up to 95% Efficiency

* Low Rds(on) Internal Switches: 100mΩ and 85mΩ

AIC2823 General Description

The AIC2823 is a monolithic synchronous stepdown converter. The device can provide 3A output current from a 4.75V to 23V input supply. The AIC2823’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and capacitors. Current mod.

AIC2823 Datasheet (536.60 KB)

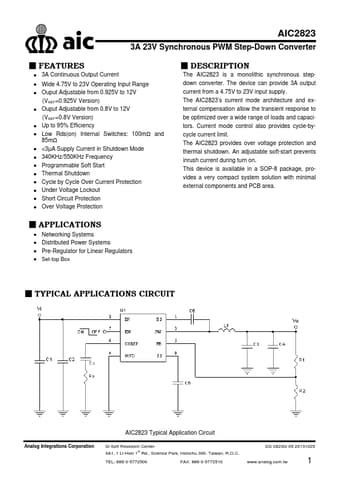

AIC2823 Datasheet Preview — Preview of AIC2823 PDF

Datasheet Details

Part number:

AIC2823

Manufacturer:

Analog Intergrations Corporation

File Size:

536.60 KB

Description:

3a 23v synchronous pwm step-down converter.
