AIC2857F - Step-Down Converter

Datasheet Summary

Description

The AIC2857F is a synchronous step-down regulator with an integrated Power MOSFET.

It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation.

Current mode operation provides fast transient response and eases loop stabilization.

Features

  • S.
  • 2A Continuous Output Current.
  • Programmable Soft Start.
  • 130mΩ Internal Power MOSFET Switches.
  • Stable with Low ESR Output Ceramic Capaci- tors.
  • Up to 93% Efficiency.

📥 Download Datasheet

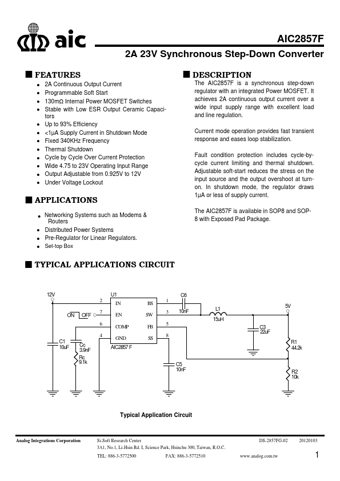

Datasheet preview – AIC2857F

Datasheet Details

Part number AIC2857F
Manufacturer Analog Intergrations Corporation
File Size 513.25 KB
Description Step-Down Converter
Datasheet download datasheet AIC2857F Datasheet
Additional preview pages of the AIC2857F datasheet.

📁 Similar Datasheet

  • AIC2832B - 2A Synchronous Step-Down Converter (Analog Integrations)
  • AIC2833B - Peak 3A Synchronous Step-Down Converter (Analog Integrations)
  • AIC2511 - 3A STEP-DOWN PWM CONVERTER (Analog Integrations Corporation)
  • AIC2565 - 23V 3A Step-Down DC/DC Converter (Analog Integrations Corporation)
  • AIC-010 - PROGRAMMABLE MASS STORAGE CONTROLLER (Adaptec)
  • AIC-010-10 - PROGRAMMABLE MASS STORAGE CONTROLLER (Adaptec)
  • AIC-12S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-15S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-24S - AIC SERIES AC-DC Power Module (ARCH)
  • AIC-270 - Encoder/Decoder (adaptec)
Other Datasheets by Analog Intergrations Corporation
  • AIC2858F - Step-Down Converter
  • AIC2802 - 3A 23V Synchronous PWM Step-Down Converter
  • AIC2803 - 8-CHANNEL DARLINGTON DRIVERS
  • AIC2822 - 2A 23V Synchronous PWM Step-Down Converter
  • AIC2823 - 3A 23V Synchronous PWM Step-Down Converter
  • AIC2862 - 2A 23V Synchronous PWM/PSM Step-Down Converter
  • AIC2863 - 3A 23V Synchronous PWM/PSM Step-Down Converter
  • AIC2300 - PWM Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text
AIC2857F 2A 23V Synchronous Step-Down Converter  FEATURES  2A Continuous Output Current  Programmable Soft Start  130mΩ Internal Power MOSFET Switches  Stable with Low ESR Output Ceramic Capaci- tors  Up to 93% Efficiency  <1µA Supply Current in Shutdown Mode  Fixed 340KHz Frequency  Thermal Shutdown  Cycle by Cycle Over Current Protection  Wide 4.75 to 23V Operating Input Range  Output Adjustable from 0.925V to 12V  Under Voltage Lockout  APPLICATIONS  Networking Systems such as Modems & Routers  Distributed Power Systems  Pre-Regulator for Linear Regulators.  Set-top Box  DESCRIPTION The AIC2857F is a synchronous step-down regulator with an integrated Power MOSFET.
