www.DataSheet4U.com ADC3214 High Speed, 14-Bit, 1 MHz, Sampling A/D Converter With Built-in Sample-and-Hold Amplifier Introduction The ADC3214 is a 14-bit, 1 MHz A/D converter with a built-in sampleand-hold amplifier.

It was designed for use in applications requiring high speed and high resolution front ends, such as ATE, medical imaging, radar, communications, and analytical instrumentation.

The ADC3214 is a cost-effective solution for both time and frequency domain applications.

It is capabl

ADC3214 Features

* u u u u u u u u 14-Bit Resolution 1 MHz Throughput Rate Reduced Cost Reduced Size No Missing Codes: 0°C to +60°C Signal-to-Noise Ratio: 76 dB Peak Distortion:

* 82 dB @ 100 kHz Total Harmonic Distortion:

* 80 dB @ 100 kHz Ease of Use Built-In S/H Amplifier TTL Compatibility High Input

ADC3214_AnalogicCorporation.pdf

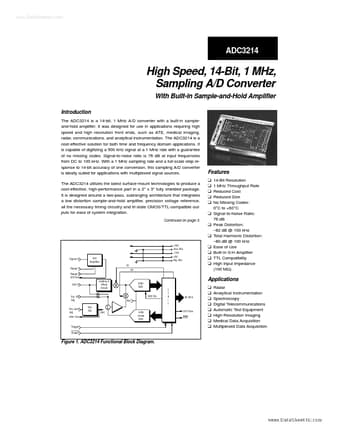

Preview of ADC3214 PDF
ADC3214 Datasheet Preview Page 2 ADC3214 Datasheet Preview Page 3

Datasheet Details

Part number:

ADC3214

Manufacturer:

Analogic Corporation

File Size:

113.66 KB

Description:

High speed 14-bit 1mhz sampling a/d converter.
