ADC3224, ADC3221 Datasheet - Texas Instruments

ADC3224 Analog-to-Digital Converter

The ADC322x are a high-linearity, ultra-low power, dual-channel, 12-bit, 25-MSPS to 125-MSPS, analogto-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more fl.

ADC3224 Features

* 1 Dual channel

* 12-Bit resolution

* Single supply: 1.8 V

* Serial LVDS interface (SLVDS)

* Flexible input clock buffer with divide-by-1, -2, -4

* SNR = 70.2 dBFS, SFDR = 87 dBc at fIN = 70 MHz

* Ultra-low power consumption:

* 116 mW/C

ADC3221-etcTI.pdf

This datasheet PDF includes multiple part numbers: ADC3224, ADC3221. Please refer to the document for exact specifications by model.

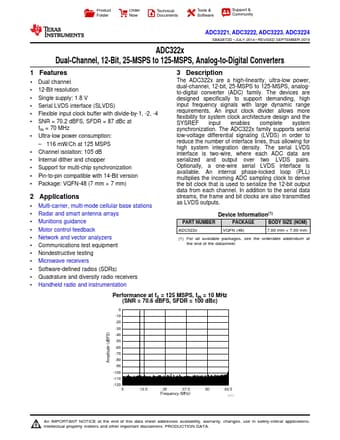

ADC3224 Datasheet Preview Page 2 ADC3224 Datasheet Preview Page 3

Datasheet Details

Part number:

ADC3224, ADC3221

Manufacturer:

Texas Instruments ↗

File Size:

5.10 MB

Description:

Analog-to-digital converter.

Note:

This datasheet PDF includes multiple part numbers: ADC3224, ADC3221.
Please refer to the document for exact specifications by model.
