ADC3223 Datasheet, Converter, Texas Instruments

ADC3223 Features

  • Converter
  • 1 Dual channel
  • 12-Bit resolution
  • Single supply: 1.8 V
  • Serial LVDS interface (SLVDS)
  • Flexible input clock buffer with divide-by-1, -2, -4

PDF File Details

Part number:

ADC3223

Manufacturer:

Texas Instruments ↗

File Size:

5.10MB

Download:

📄 Datasheet

Description:

Analog-to-digital converter. The ADC322x are a high-linearity, ultra-low power, dual-channel, 12-bit, 25-MSPS to 125-MSPS, analogto-digital converter (ADC) family

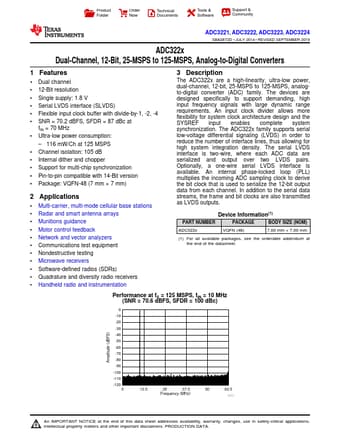

Datasheet Preview: ADC3223 📥 Download PDF (5.10MB)
Page 2 of ADC3223 Page 3 of ADC3223

ADC3223 Application

  • Applications
  • Multi-carrier, multi-mode cellular base stations
  • Radar and smart antenna arrays
  • Munitions guidance
  • <
