ADC321, ADC300 Datasheet - MPS Industries

ADC321 Single & Dual Output DC/DC Converters

www.DataSheet.co.kr ADC300 SERIES 2W, Miniature SIP, Single & Dual Output DC/DC Converters Selection Guide Model Number ADC301 ADC302 ADC303 ADC304 ADC305 ADC306 ADC307 ADC311 ADC312 ADC313 ADC314 ADC315 ADC316 ADC317 ADC321 ADC322 ADC323 ADC324 ADC325 ADC326 ADC327 Input Voltage VDC Output Voltage VDC 3.3 5 12 15 ±5 ±12 ±15 3.3 5 12 15 ±5 ±12 ±15 3.3 5 12 15 ±5 ±12 ±15 Output Current mA 500 400 165 133 ±200 ±83 ±66 500 400 165 133 ±200 ±83 ±66 500 400 165 133 ±200 ±83 ±66 Efficiency % Typ. 73 .

ADC321 Features

* Efficiency up to 83% 1000VDC Isolation MTBF > 2,000,000 Hours Low Cost Input 5, 12 and 24VDC Output 3.3, 5, 12, 15, ±5, ±12 and ±15VDC Temperature Performance -40°C to +85°C UL 94V-0 Package Material

ADC300_MPSIndustries.pdf

This datasheet PDF includes multiple part numbers: ADC321, ADC300. Please refer to the document for exact specifications by model.

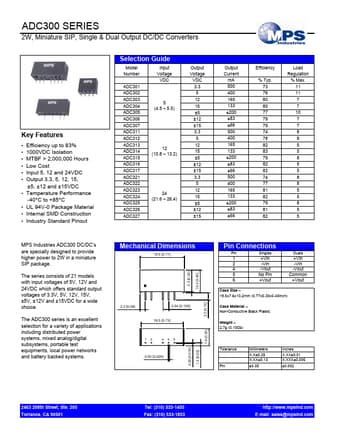

ADC321 Datasheet Preview Page 2

Datasheet Details

Part number:

ADC321, ADC300

Manufacturer:

MPS Industries

File Size:

222.35 KB

Description:

Single & dual output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: ADC321, ADC300.
Please refer to the document for exact specifications by model.
