ADC3241 Datasheet, Converter, Texas Instruments

ADC3241 Features

  • Converter
  • 1 Dual Channel
  • 14-Bit Resolution
  • Single Supply: 1.8 V
  • Serial LVDS Interface (SLVDS)
  • Flexible Input Clock Buffer with Divide-by-1, -2, -4

PDF File Details

Part number:

ADC3241

Manufacturer:

Texas Instruments ↗

File Size:

4.17MB

Download:

📄 Datasheet

Description:

Analog-to-digital converter. The ADC324x are a high-linearity, ultra-low power, dual-channel, 14-bit, 25-MSPS to 125-MSPS, analogto-digital converter (ADC) family

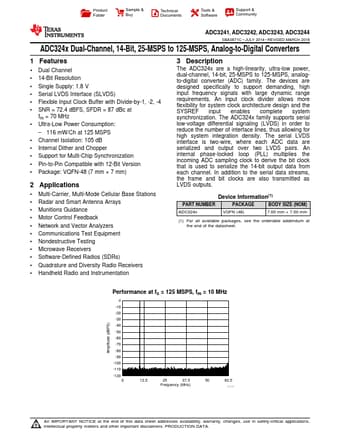

Datasheet Preview: ADC3241 📥 Download PDF (4.17MB)
Page 2 of ADC3241 Page 3 of ADC3241

ADC3241 Application

  • Applications
  • Multi-Carrier, Multi-Mode Cellular Base Stations
  • Radar and Smart Antenna Arrays
  • Munitions Guidance
  • <
