ADC3242, ADC3241 Datasheet - Texas Instruments

ADC3242 Analog-to-Digital Converter

The ADC324x are a high-linearity, ultra-low power, dual-channel, 14-bit, 25-MSPS to 125-MSPS, analogto-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more fl.

ADC3242 Features

* 1 Dual Channel

* 14-Bit Resolution

* Single Supply: 1.8 V

* Serial LVDS Interface (SLVDS)

* Flexible Input Clock Buffer with Divide-by-1, -2, -4

* SNR = 72.4 dBFS, SFDR = 87 dBc at fIN = 70 MHz

* Ultra-Low Power Consumption:

* 116 mW/C

ADC3241-etcTI.pdf

This datasheet PDF includes multiple part numbers: ADC3242, ADC3241. Please refer to the document for exact specifications by model.

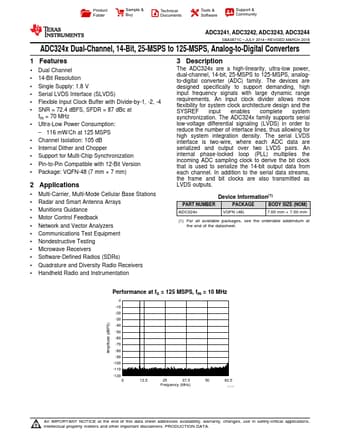

ADC3242 Datasheet Preview Page 2 ADC3242 Datasheet Preview Page 3

Datasheet Details

Part number:

ADC3242, ADC3241

Manufacturer:

Texas Instruments ↗

File Size:

4.17 MB

Description:

Analog-to-digital converter.

Note:

This datasheet PDF includes multiple part numbers: ADC3242, ADC3241.
Please refer to the document for exact specifications by model.
