1W1304-10 Datasheet - Anaren Microwave

Directional Couplers

1W1304-10 Features

* 800

* 1000 MHz Low loss High Directivity Surface Mountable Tape And Reel Convenient Package 100% Tested Frequency MHz Mean Coupling dB Insertion Loss dB Max VSWR Max:1 Freq. Sensitivity dB Max 869

* 894 925

1W1304-10 General Description

The 1W1304-10 is a low profile 10dB directional coupler in an easy to use surface mount package covering the AMPS and GSM bands. The 1W1304-10 is ideal for power and frequency detection as well as power injection and can be used in most high power designs. The 1W1304-10 has modified RF pads which ca.

1W1304-10 Datasheet (242.84 KB)

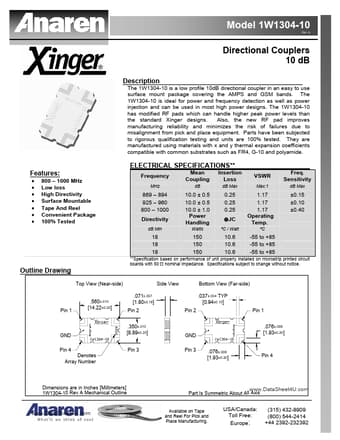

Preview of 1W1304-10 PDF

Datasheet Details

Part number:

1W1304-10

Manufacturer:

Anaren Microwave

File Size:

242.84 KB

Description:

Directional couplers.
