1W1304-3

Hybrid Couplers

1W1304-3 Features

* 800

* 1200 MHz Low Loss High Isolation 90° Quadrature Surface Mountable Tape And Reel Convenient Package 100% Tested Frequency MHz Isolation dB Min Insertion Loss dB Max VSWR Max:1 815 - 960 800 - 1200 Ampli

1W1304-3 General Description

The 1W1304-3 is a low profile 3dB hybrid coupler in an easy to use surface mount package covering the AMPS and GSM bands. The 1W1304-3 is ideal for balanced amplifiers and signal distribution and can be used in most high power designs. The 1W1304-3 has modified RF pads for improved peak power handli.

1W1304-3 Datasheet (365.37 KB)

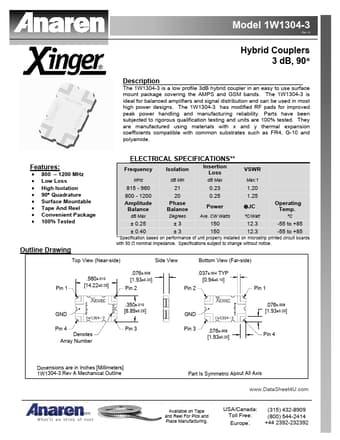

Preview of 1W1304-3 PDF

Datasheet Details

Part number:

1W1304-3

Manufacturer:

Anaren Microwave

File Size:

365.37 KB

Description:

Hybrid couplers.
