1W1305-3

Hybrid Couplers

1W1305-3 Features

* 1.6

* 2.4 GHz Low Loss High Isolation 90° Quadrature Surface Mountable Higher Peak Power Tape And Reel Convenient Package 100% Tested Frequency GHz Isolation dB Min Insertion Loss dB Max VSWR Max:1

1W1305-3 General Description

The 1W1305-3 is a low profile 3dB hybrid coupler in an easy to use surface mount package covering DCS, PCS, W-CDMA, UMTS and other 3G applications. The 1W1305-3 is ideal for balanced amplifiers and signal distribution and can be used in most high power designs. The 1W1305-3 has modified RF pads that.

1W1305-3 Datasheet (365.75 KB)

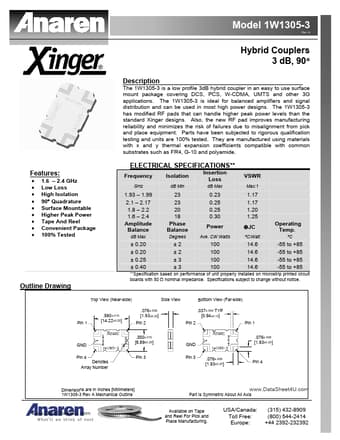

Preview of 1W1305-3 PDF

Datasheet Details

Part number:

1W1305-3

Manufacturer:

Anaren Microwave

File Size:

365.75 KB

Description:

Hybrid couplers.
