1W1305-10

Directional Couplers

1W1305-10 Features

* 1.7

* 2.0 GHz Low loss High Directivity Surface Mountable Tape And Reel Convenient Package 100% Tested Frequency GHz Mean Coupling dB Insertion Loss dB Max VSWR Max:1 Freq. Sensitivity dB Max 1.805

* 1.880 1.

1W1305-10 General Description

The 1W1305-10 is a low profile 10dB directional coupler in an easy to use surface mount package covering the DCS and PCS bands. The 1W130510 is ideal for power and frequency detection as well as power injection and can be used in most high power designs. The 1W1305-10 has modified RF pads which can .

1W1305-10 Datasheet (244.45 KB)

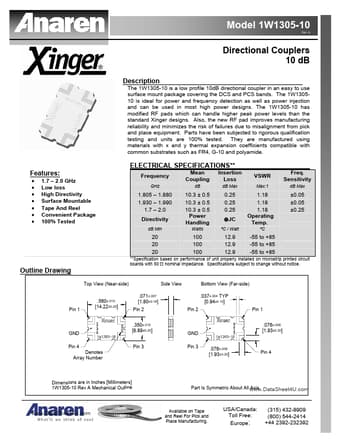

Preview of 1W1305-10 PDF

Datasheet Details

Part number:

1W1305-10

Manufacturer:

Anaren Microwave

File Size:

244.45 KB

Description:

Directional couplers.
