BD2425N50ATI - Ultra Low Profile 0404 Balun

Anaren Microwave

📥 Download Datasheet

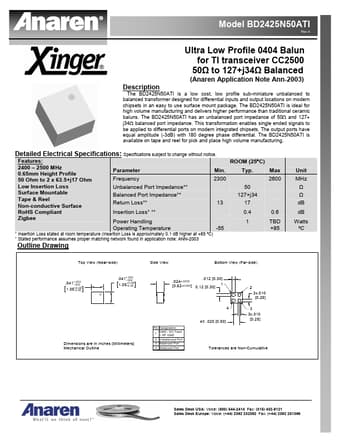

BD2425N50ATI Datasheet Preview — Preview of BD2425N50ATI PDF

Datasheet Details

Part number: BD2425N50ATI
Manufacturer: Anaren Microwave
File Size: 258.59 KB
Datasheet: BD2425N50ATI-AnarenMicrowave.pdf
Description: Ultra Low Profile 0404 Balun

BD2425N50ATI Product details

Description

The BD2425N50ATI is a low cost, low profile sub-miniature unbalanced to balanced transformer designed for differential inputs and output locations on modern chipsets in an easy to use surface mount package.

Features

2400.
2500 MHz 0.65mm Height Profile 50 Ohm to 2 x 63.5+j17 Ohm Low Insertion Loss Surface Mountable Tape & Reel Non-conductive Surface RoHS Compliant Zigbee ROOM (25°C) Parameter Frequency Unbalanced Port Impedance.
Balanced Port Impedance.
Return Loss.
Insertion Loss.
Power Handling Operating Temperature -55 Min. 2300 50 127+j34 17 0.4 1 0.6 TBD +85 Typ. Max 2600 Unit MHz Ω Ω dB dB Watts ºC 13.
Insertion Loss stated at room temperature.
