BD242C, BD242, PNP Transistor

isc Silicon PNP Power Transistor INCHANGE Semiconductor BD242/A/B/C .
DC Current Gain -hFE = 25(Min)@ IC= -1. Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -45V(Min)- BD242; -60V(Min)- BD242A -80V(Min)-.

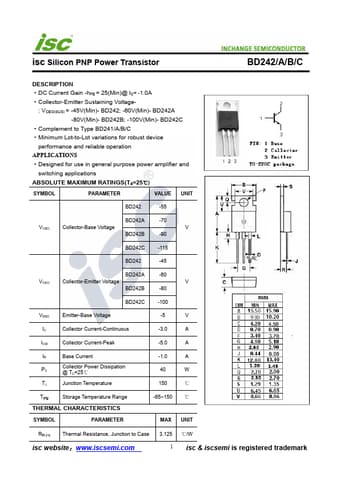

datasheet Preview Page 1 from Datasheet4u.com

BD242-INCHANGE.pdf

BD242C Datasheet Preview — This datasheet PDF includes multiple part numbers: BD242C, BD242. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD242C, BD242

Manufacturer:

INCHANGE

File Size:

211.13 KB

Description:

PNP Transistor

Note:

This datasheet PDF includes multiple part numbers: BD242C, BD242.
Please refer to the document for exact specifications by model.

Applications

* Designed for use in general purpose power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BD242 -55 BD242A -70 VCBO Collector-Base Voltage V BD242B -90 BD242C -115 BD242 -45 BD242A -60 VCEO Collector-Emitter Voltage V BD242
