BD242A, BD242 - PNP Transistor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD242A, BD242. Please refer to the document for exact specifications by model.

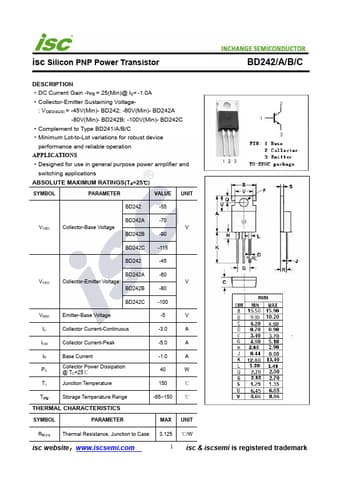

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD242A, BD242
Manufacturer
INCHANGE
File Size
211.13 KB
Datasheet
download datasheet BD242-INCHANGE.pdf
Description
PNP Transistor
Note
This datasheet PDF includes multiple part numbers: BD242A, BD242.
Please refer to the document for exact specifications by model.

BD242A Product details

Description

DC Current Gain -hFE = 25(Min)@ IC= -1.0A Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -45V(Min)- BD242; -60V(Min)- BD242A -80V(Min)- BD242B; -100V(Min)- BD242C Complement to Type BD241/A/B/C Minimum Lot-to-Lot variations for robust device performance and reliable operation
