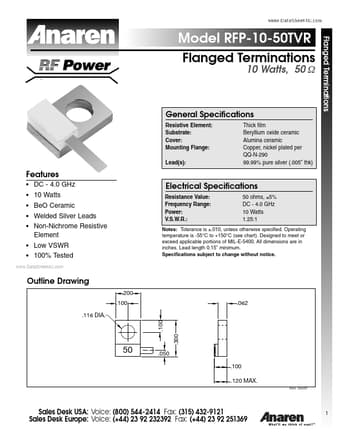

RFP-10-50TVR - Flanged Terminations

Anaren Microwave

Datasheet Details

DC - 4.0 GHz.
10 Watts.
BeO Ceramic.
Welded Silver Leads.
Non-Nichrome Resistive Element.
Low VSWR.
100% Tested www. DataSheet4U. com Electrical Specifications Resistance Value: Frequency Range: Power: V. S. W. R. : 50 ohms, ±5% DC - 4.0 GHz 10 Watts 1.25:1 Notes: Tolerance is ±.010, unless otherwise specified. Operating temperature is -55°C to +150°C (see chart). Designed to meet or exceed applicable portions of MIL-E-5400. All dimensi.
