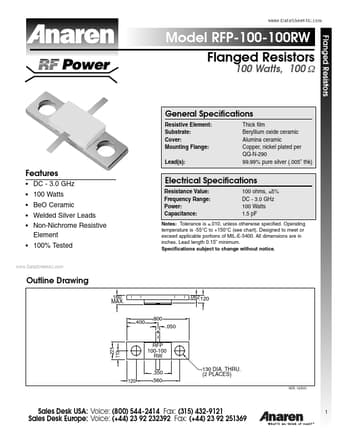

RFP-100-100RW - Flanged Resistors

Anaren Microwave

Datasheet Details

DC - 3.0 GHz.
100 Watts.
BeO Ceramic.
Welded Silver Leads.
Non-Nichrome Resistive Element.
100% Tested www. DataSheet4U. com Electrical Specifications Resistance Value: Frequency Range: Power: Capacitance: 100 ohms, ±5% DC - 3.0 GHz 100 Watts 1.5 pF Notes: Tolerance is ±.010, unless otherwise specified. Operating temperature is -55°C to +150°C (see chart). Designed to meet or exceed applicable portions of MIL-E-5400. All dimensions are in in.
