RFP10N15 - N-Channel Power MOSFET

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • 10A, 150V.
  • rDS(ON) = 0.300Ω.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Information PART NUMBER RFP10N15.

📥 Download Datasheet

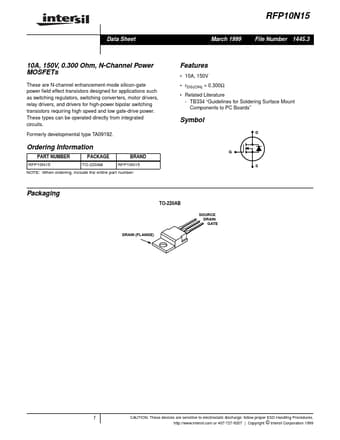

Datasheet preview – RFP10N15

Datasheet Details

Part number RFP10N15
Manufacturer Intersil Corporation
File Size 40.38 KB
Description N-Channel Power MOSFET
Datasheet download datasheet RFP10N15 Datasheet
Additional preview pages of the RFP10N15 datasheet.

📁 Similar Datasheet

  • RFP10N15 - (RFP10N12 / RFP10N15) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10N15 - (RFP10N12 / RFP10N15) N-Channel Power MOSFET (Harris Semiconductor)
  • RFP10N15L - (RFP10N12L / RFP10N15L) N-Channel Logic Level Power MOSFET (Harris Semiconductor)
  • RFP10N15L - (RFP10N12L / RFP10N15L) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10N12 - (RFP10N12 / RFP10N15) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10N12 - (RFP10N12 / RFP10N15) N-Channel Power MOSFET (Harris Semiconductor)
  • RFP10N12L - (RFP10N12L / RFP10N15L) N-Channel Logic Level Power MOSFET (Harris Semiconductor)
  • RFP10N12L - (RFP10N12L / RFP10N15L) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10P03L - P-Channel Power MOSFET (Harris)
  • RFP10P12 - (RFP10P12 / RFP10P15) P-CHANNEL ENHANCEMENT - MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
Other Datasheets by Intersil Corporation

Full PDF Text Transcription

Click to expand full text
RFP10N15 Data Sheet March 1999 File Number 1445.3 10A, 150V, 0.300 Ohm, N-Channel Power MOSFETs These are N-channel enhancement-mode silicon-gate power field effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers, and drivers for high-power bipolar switching transistors requiring high speed and low gate-drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA09192. Features • 10A, 150V • rDS(ON) = 0.300Ω • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Information PART NUMBER RFP10N15 PACKAGE TO-220AB BRAND RFP10N15 G S NOTE: When ordering, include the entire part number.
