RFP10P03L Datasheet, Mosfet, Harris

RFP10P03L Features

• Mosfet Description
• 10A, 30V
• rDS(ON) = 0.200Ω
• Temperature Compensating PSPICE Model
• PSPICE Thermal Model
• Peak Current vs Pulse Width Curve

PDF File Details

Part number:

RFP10P03L

Manufacturer:

Harris

File Size:

271.70kb

Download:

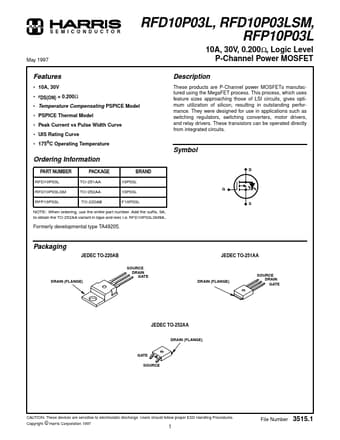

📄 Datasheet

Description:

P-channel power mosfet. 10A, 30V rDS(ON) = 0.200Ω Temperature Compensating PSPICE Model PSPICE Thermal Model

RFP10P03L Application

• Applications such as switching regulators, switching converters, motor drivers, and relay drivers. These transistors can be operated directly from i
