RFP10P15 - P-Channel Power MOSFET

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • -10A, -150V.
  • rDS(ON) = 0.500Ω.
  • SOA is Power Dissipation Limited.
  • Nanosecond Switching Speeds.
  • Linear Transfer Characteristics.
  • High Input Impedance.
  • Majority Carrier Device.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER RFP10P15.

📥 Download Datasheet

Datasheet preview – RFP10P15

Datasheet Details

Part number RFP10P15
Manufacturer Intersil Corporation
File Size 305.12 KB
Description P-Channel Power MOSFET
Datasheet download datasheet RFP10P15 Datasheet
Additional preview pages of the RFP10P15 datasheet.

📁 Similar Datasheet

  • RFP10P15 - (RFP10P12 / RFP10P15) P-CHANNEL ENHANCEMENT - MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10P12 - (RFP10P12 / RFP10P15) P-CHANNEL ENHANCEMENT - MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10P03L - P-Channel Power MOSFET (Harris)
  • RFP10N12 - (RFP10N12 / RFP10N15) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10N12 - (RFP10N12 / RFP10N15) N-Channel Power MOSFET (Harris Semiconductor)
  • RFP10N12L - (RFP10N12L / RFP10N15L) N-Channel Logic Level Power MOSFET (Harris Semiconductor)
  • RFP10N12L - (RFP10N12L / RFP10N15L) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10N15 - (RFP10N12 / RFP10N15) N-CHANNEL ENHANCEMENT-MODE POWER FIELD-EFFECT TRANSISTORS (GE Solid State)
  • RFP10N15 - (RFP10N12 / RFP10N15) N-Channel Power MOSFET (Harris Semiconductor)
  • RFP10N15L - (RFP10N12L / RFP10N15L) N-Channel Logic Level Power MOSFET (Harris Semiconductor)
Other Datasheets by Intersil Corporation

Full PDF Text Transcription

Click to expand full text

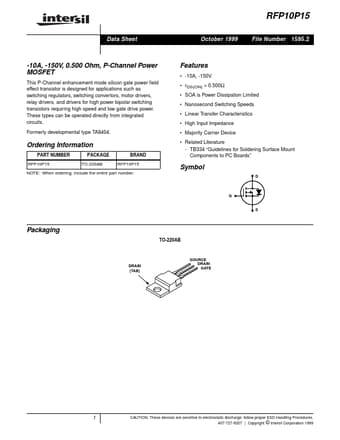

RFP10P15 Data Sheet October 1999 File Number 1595.2 -10A, -150V, 0.500 Ohm, P-Channel Power MOSFET This P-Channel enhancement mode silicon gate power field effect transistor is designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA9404. Features • -10A, -150V • rDS(ON) = 0.
