RFP70N06, N-Channel Enhancement-Mode Power MOSFETs

SEMICONDUCTOR RFG70N06, RFP70N06, RF1S70N06, RF1S70N06SM December 1995 70A, 60V, Avalanche Rated, N-Channel Enhancement-Mode Power MOSFETs .
The RFG70N06, RFP70N06, RF1S70N06 and RF1S70N06SM are N-channel power MOSFETs manufactured using the MegaFET process.

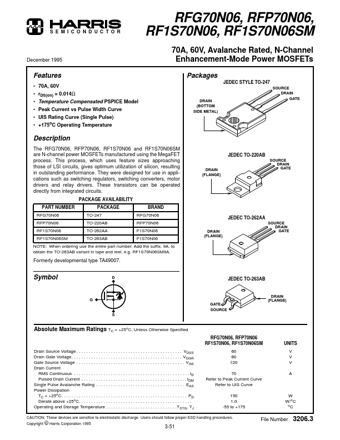

datasheet Preview Page 1 from Datasheet4u.com

RFP70N06-Harris.pdf

RFP70N06 Datasheet Preview — Preview of RFP70N06 PDF

Datasheet Details

Part number:

RFP70N06

Manufacturer:

Harris

File Size:

65.85 KB

Description:

N-Channel Enhancement-Mode Power MOSFETs

Features

* 70A, 60V
* rDS(on) = 0.014Ω
* Temperature Compensated PSPICE Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve (Single Pulse)
* +175oC Operating Temperature Packages DRAIN (BOTTOM SIDE METAL) JEDEC STYLE TO-247 SOURCE DRAIN GATE Descrip

Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits. PACKAGE AVAILABILITY PART NUMBER PACKAGE BRAND RFG70N06 TO-247 RFG70N06 RFP70N06 TO-220AB RFP70N06 RF1S70N06 TO-262AA F1S70N06 RF1S7
