RFP7N40 - N-Channel MOSFET

Intersil Corporation

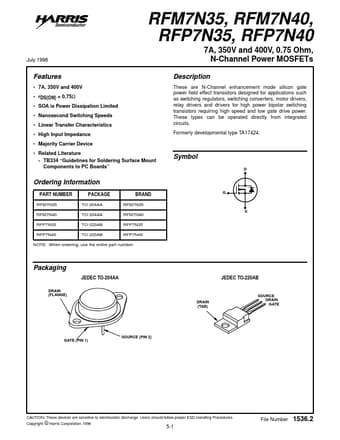

RFP7N40 Datasheet Preview — Preview of RFP7N40 PDF

Datasheet Details

Part number	RFP7N40
Manufacturer	Intersil Corporation
File Size	47.43 KB
Description	N-Channel MOSFET
Datasheet	RFP7N40_IntersilCorporation.pdf

RFP7N40 Product details

Description

These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power.

Features

7A, 350V and 400V.
rDS(ON) = 0.75Ω.
SOA is Power Dissipation Limited.
Nanosecond Switching Speeds.
Linear Transfer Characteristics.
High Input Impedance.
Majority Carrier Device.
Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Information PART NUMBER RFM7N35 RFM7N40 RFP7N35 RFP7N40.
