RFP30P05 Datasheet, Mosfet, Harris

RFP30P05 Features

• Mosfet
• 30A, 50V
• rDS(ON) = 0.065Ω
• Temperature Compensating PSPICE Model
• Peak Current vs Pulse Width Curve
• UIS Rating Curve
• +175oC Op

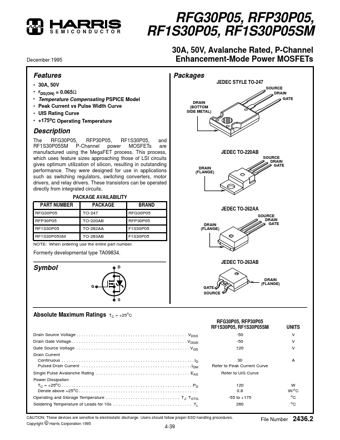

PDF File Details

Part number:

RFP30P05

Manufacturer:

Harris

File Size:

100.84kb

Download:

📄 Datasheet

Description:

P-channel enhancement-mode power mosfet. The RFG30P05, RFP30P05, RF1S30P05, and RF1S30P05SM P-Channel power MOSFETs are manufactured using the MegaFET process. This process,

RFP30P05 Application

• Applications such as switching regulators, switching converters, motor drivers, and relay drivers. These transistors can be operated directly from i
