RFP30P06 - P-Channel Power MOSFET

Intersil Corporation

📥 Download Datasheet

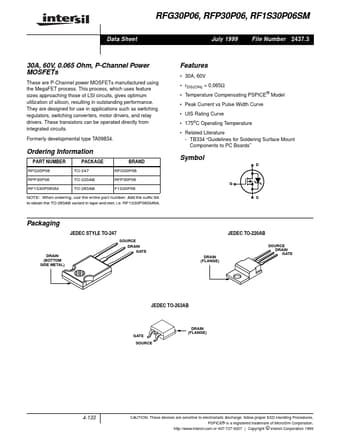

RFP30P06 Datasheet Preview — Preview of RFP30P06 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RFP30P06
Manufacturer: Intersil Corporation
File Size: 71.16 KB
Datasheet: RFP30P06_IntersilCorporation.pdf
Description: P-Channel Power MOSFET

RFP30P06 Product details

Features

30A, 60V.
rDS(ON) = 0.065Ω.
Temperature Compensating PSPICE® Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
175oC Operating Temperature.
Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER RFG30P06 RFP30P06 RF1S30P06SM.
