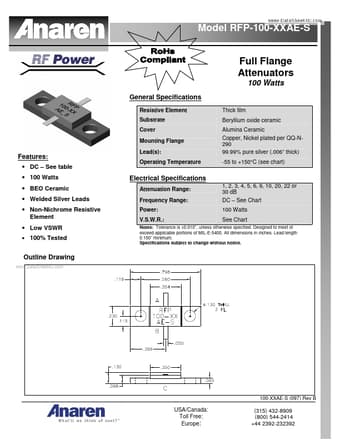

RFP-100-20AE-S - Flanged Attenuators

Anaren Microwave

Datasheet Details

DC.
See table.
100 Watts.
BEO Ceramic.
Welded Silver Leads.
Non-Nichrome Resistive Element.
Low VSWR.
100% Tested Lead(s): Operating Temperature Electrical Specifications Attenuation Range: Frequency Range: Power: V. S. W. R. : 1, 2, 3, 4, 5, 6, 9, 10, 20, 22 or 30 dB DC.
See Chart 100 Watts See Chart Notes: Tolerance is ±0.010”, unless otherwise specified. Designed to meet of exceed applicable portions of MIL-E-54.
