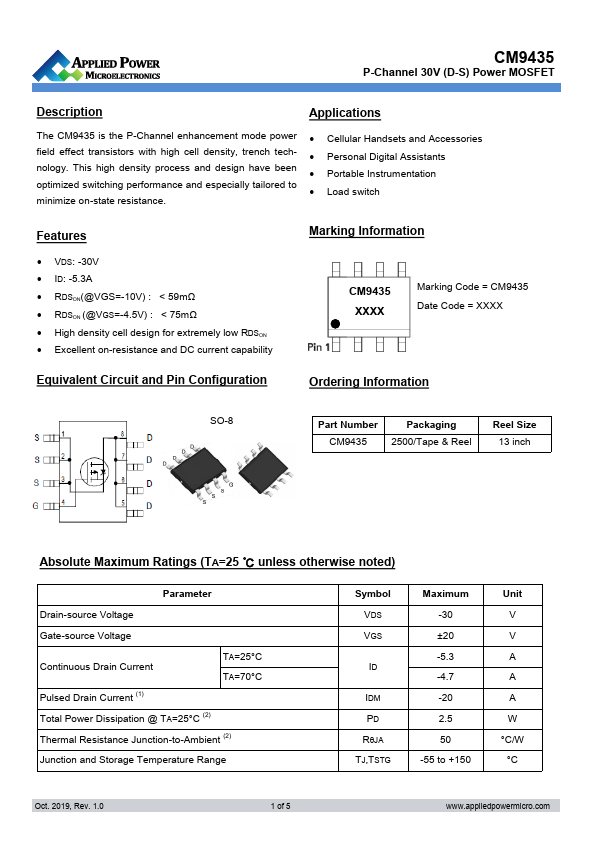

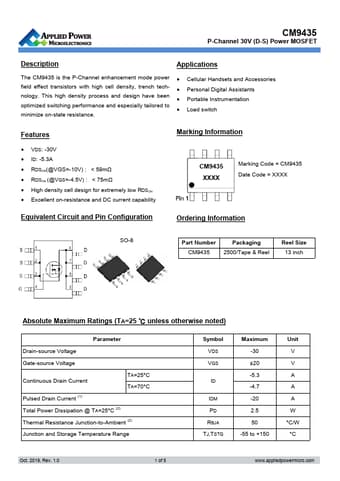

CM9435 - P-Channel 30V (D-S) Power MOSFET

CM9435 Datasheet Preview — Preview of CM9435 PDF

Datasheet Details

Part number	CM9435
Manufacturer	Applied Power Microelectronics
File Size	1.29 MB
Description	P-Channel 30V (D-S) Power MOSFET
Datasheet	CM9435-AppliedPowerMicroelectronics.pdf

CM9435 Product details

Description

Applications The CM9435 is the P-Channel enhancement mode power Cellular Handsets and Accessories field effect transistors with high cell density, trench tech- Personal Digital Assistants nology. Portable Instrumentation optimized switching performance and especially tailored to Load switch minimize on-state resistance.

Features

VDS: -30V.
ID: -5.3A.
RDSON(@VGS=-10V) : < 59mΩ.
RDSON (@VGS=-4.5V) : < 75mΩ.
High density cell design for extremely low RDSON.
Excellent on-resistance and DC current capability Marking Information CM9435 XXXX Marking Code = CM9435 Date Code = XXXX Equivalent Circuit and Pin Configuration Ordering Information SO-8 Part Number Packaging CM9435 2500/Tape & Reel Reel Size 13 inch Absolute Maximum Ratings (TA=25 ℃ unless otherwise noted) Parameter Drain-so.
