CM900HG-90H HVIGBT MODULES

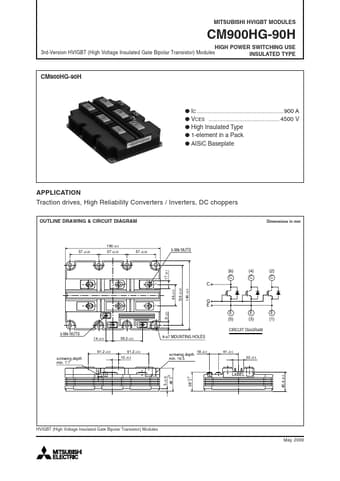

MITSUBISHI HVIGBT MODULES CM900HG-90H HIGH POWER SWITCHING USE 3rd-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules INSULATED TYPE CM900HG-90H IC 900 A VCES 4500 V High Insulated Type 1-element in a Pack AISiC Baseplate APPLICATION Traction drives, High Reliability Converters / Inverters, DC choppers OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 57±0.25 190±0.5 57±0.25 57±0.25 5-M8 NUTS 6 4 2 17±0.1 (6) (4) (2) C.
