CM900DU-24NF

IGBT Module

CM900DU-24NF Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking Applications:

* High Power UPS

* Large Motor Drives

* Utility Interface Inverters Ordering Information: Example: Select

CM900DU-24NF General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinki.

CM900DU-24NF Datasheet (78.72 KB)

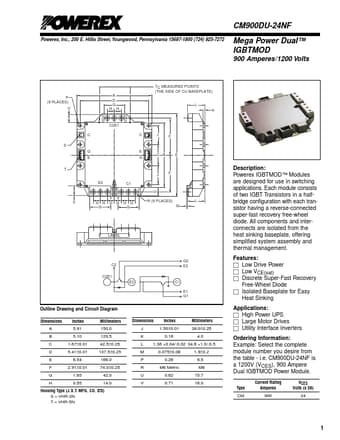

Preview of CM900DU-24NF PDF

Datasheet Details

Part number:

CM900DU-24NF

Manufacturer:

Powerex Power Semiconductors

File Size:

78.72 KB

Description:

Igbt module.
CM900DU-24NF Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Mega Power Dual™ IGBTMOD 900 Amperes/1200 Volts .
