CM900HB-90H

IGBT Module

CM900HB-90H Features

* Low Drive Power

* Low VCE(sat)

* Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking C C C C G E E E E Outline Drawing and Circuit Diagram Dimensions A B C D E F G H J K L Inches 7.48 5.51 1.50 6.73 4.88± 0.01 1.57 0.79 0.80 1.62 3.

CM900HB-90H General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of one IGBT Transistor with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and .

CM900HB-90H Datasheet (559.32 KB)

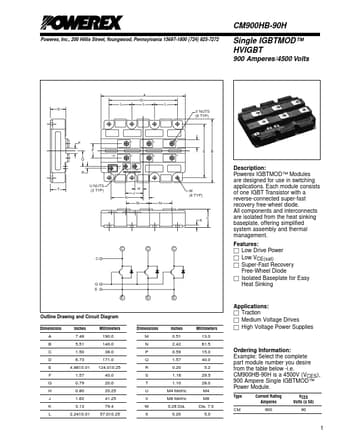

Preview of CM900HB-90H PDF

Datasheet Details

Part number:

CM900HB-90H

Manufacturer:

Powerex Power Semiconductors

File Size:

559.32 KB

Description:

Igbt module.
CM900HB-90H Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Single IGBTMOD™ HVIGBT 900 Amperes/4500 Volts L S A.
