ASD5020 Datasheet - Arctic Silicon Devices

ASD5020 High Speed Mode Multi-Mode 12-bit 640 MSPS / 8-bit 1000 MSPS Analog to Digital Converter

The ASD5020 is a versatile high performance low power analog-to-digital converter (ADC), utilizing time-interleaving to increase sampling rate. Integrated Cross Point Switches activate the input selected by the user. In single channel mode, one of the four inputs can be selected as valid input to th.

ASD5020 Features

* 12-bit Modes

* Single Channel Mode: FSmax = 640 MSPS

* Dual Channel Mode: FSmax = 320 MSPS

* Quad Channel Mode: FSmax = 160 MSPS

* SNR: 71 dB, SFDR: 65 dB 8-bit Modes

* Single Channel Mode: FSmax = 1000 MSPS

* Dual Channel Mode: FSmax = 500 MSPS

* Quad Channel Mode:

ASD5020-ArcticSiliconDevices.pdf

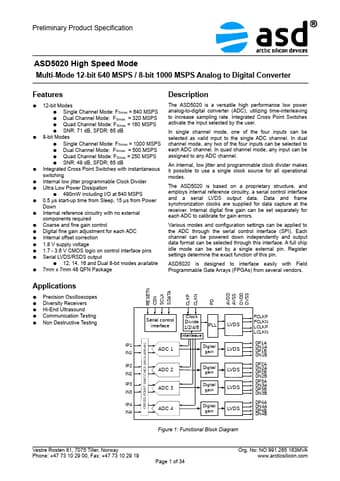

ASD5020 Datasheet Preview — Preview of ASD5020 PDF

Datasheet Details

Part number:

ASD5020

Manufacturer:

Arctic Silicon Devices

File Size:

442.23 KB

Description:

High speed mode multi-mode 12-bit 640 msps / 8-bit 1000 msps analog to digital converter.
