ASD5020HS, ASD5020, High Speed Mode Multi-Mode 12-bit 640 MSPS / 8-bit 1000 MSPS Analog to Digital Converter

Preliminary Product Specification ASD5020 High Speed Mode Multi-Mode 12-bit 640 MSPS / 8-bit 1000 MSPS Analog to Digital Converter .
The ASD5020 is a versatile high performance low power analog-to-digital converter (ADC), utilizing time-interleaving to increase sampling rate.

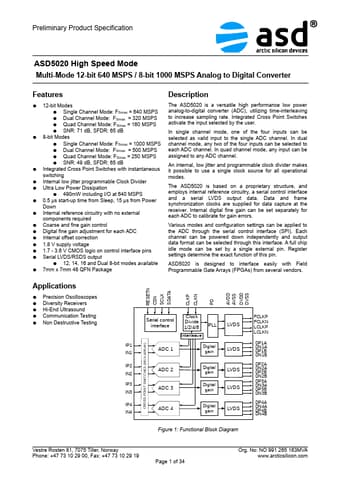

datasheet Preview Page 1 from Datasheet4u.com

ASD5020-ArcticSiliconDevices.pdf

ASD5020HS Datasheet Preview — This datasheet PDF includes multiple part numbers: ASD5020HS, ASD5020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASD5020HS, ASD5020

Manufacturer:

Arctic Silicon Devices

File Size:

442.23 KB

Description:

High Speed Mode Multi-Mode 12-bit 640 MSPS / 8-bit 1000 MSPS Analog to Digital Converter

Note:

This datasheet PDF includes multiple part numbers: ASD5020HS, ASD5020.
Please refer to the document for exact specifications by model.

Features

* 12-bit Modes
* Single Channel Mode: FSmax = 640 MSPS
* Dual Channel Mode: FSmax = 320 MSPS
* Quad Channel Mode: FSmax = 160 MSPS
* SNR: 71 dB, SFDR: 65 dB 8-bit Modes
* Single Channel Mode: FSmax = 1000 MSPS
* Dual Channel Mode: FSmax = 500 MSPS
* Quad Channel Mode:

Applications

* Precision Oscilloscopes Diversity Receivers Hi-End Ultrasound Communication Testing Non Destructive Testing SDATA AVDD AVSS SCLK CLKN CLKP CSN Serial control interface Clock Divide 1/2/4/8 Interleave PD DVDD DVSS FCLKP FCLKN LCLKP LCLKN DP1A DN1A DP1B DN1B DP2
