ASD5020PM High Speed Mode Multi-Mode 12-bit 640 MSPS / 8-bit 1000 MSPS Analog to Digital Converter

The ASD5020 is a versatile high performance low power analog-to-digital converter (ADC), utilizing time-interleaving to increase sampling rate. Integrated Cross Point Switches activate the input selected by the user. In single channel mode, one of the four inputs can be selected as valid input to th.

ASD5020PM Features

* 12-bit Modes

* Single Channel Mode: FSmax = 640 MSPS

* Dual Channel Mode: FSmax = 320 MSPS

* Quad Channel Mode: FSmax = 160 MSPS

* SNR: 71 dB, SFDR: 65 dB 8-bit Modes

* Single Channel Mode: FSmax = 1000 MSPS

* Dual Channel Mode: FSmax = 500 MSPS

* Quad Channel Mode:

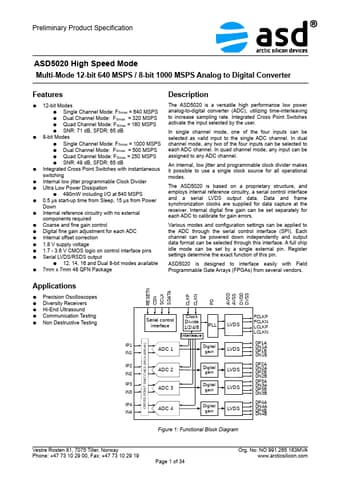

ASD5020-ArcticSiliconDevices.pdf

ASD5020PM Datasheet Preview — This datasheet PDF includes multiple part numbers: ASD5020PM, ASD5020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASD5020PM, ASD5020

Manufacturer:

Arctic Silicon Devices

File Size:

442.23 KB

Description:

High speed mode multi-mode 12-bit 640 msps / 8-bit 1000 msps analog to digital converter.

Note:

This datasheet PDF includes multiple part numbers: ASD5020PM, ASD5020.
Please refer to the document for exact specifications by model.
