ASD501V Datasheet - Formosa MS

ASD501V Surface mount small signal type

Advanced Schottky Barrier Diodes ASD501V Surface mount small signal type Extermely thin package Low stored charge Majority carrier conduction R0.3 (0.012) Typ. Formosa MS 0.087 (2.2) 0.071 (1.8) 0.012(0.3) Typ. 0.055 (1.4) 0.039 (1.0) 0.043 (1.1) 0.028 (0.7) Mechanical data Case : Molded plastic, 0805 Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 Polarity : Indicated by cathode band Mounting Position : Any Weight : 0.000159 ounce, 0.0045 gram 0805 MAXIMUM RATINGS (AT .

ASD501V_FormosaMS.pdf

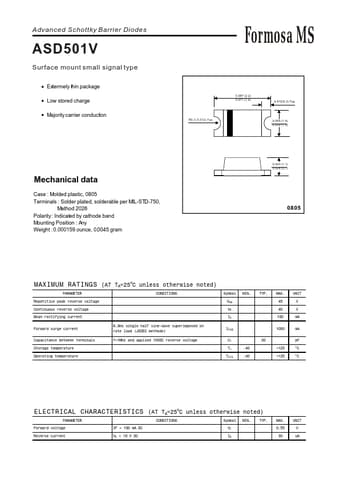

ASD501V Datasheet Preview — Preview of ASD501V PDF

Datasheet Details

Part number:

ASD501V

Manufacturer:

Formosa MS

File Size:

76.35 KB

Description:

Surface mount small signal type.
