AZ100E131 Datasheet - Arizona Microtek

ECL/PECL 4-bit D Flip-Flop

AZ100E131 Features

* PACKAGE AVAILABILITY 1100 MHz Min. Toggle Frequency PACKAGE PART NUMBER MARKING NOTES Differential Outputs AZM10E131 Individual and Common Clocks PLCC 28 AZ10E131FN 1,2 Individual Resets (asynchronous) AZM100

AZ100E131 General Description

The AZ10/100E131 is a quad master-slave D-type flip-flop with differential outputs. Each flip-flop may be clocked separately by holding Common Clock (CC) LOW and using the Clock Enable (CE ¯¯ n) inputs for clocking. Common clocking is achieved by holding the CE ¯¯ n inputs LOW and using CC to clock .

AZ100E131 Datasheet (102.05 KB)

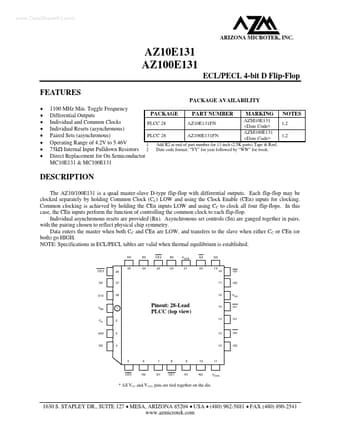

AZ100E131 Datasheet Preview — Preview of AZ100E131 PDF

Datasheet Details

Part number:

AZ100E131

Manufacturer:

Arizona Microtek

File Size:

102.05 KB

Description:

Ecl/pecl 4-bit d flip-flop.
