AZ100EL31 - ECL/PECL D Flip-Flop

AZ100EL31 Description

www.DataSheet4U.com ARIZONA MICROTEK, INC.AZ10EL31 AZ100EL31 ECL/PECL D Flip-Flop with Set and Reset .
The AZ10/100EL31 is a master-slave D flip-flop with set and reset.

AZ100EL31 Features

* 475ps Propagation Delay 2.8GHz Toggle Frequency 75kΩ Internal Input Pulldown Resistors Direct Replacement for ON Semiconductor MC10EL31 & MC100EL31 PACKAGE AVAILABILITY PACKAGE SOIC 8 SOIC 8 T&R SOIC 8 T&R SOIC 8 SOIC 8 T&R SOIC 8 T&R TSSOP 8 TSSOP 8 T&R TSSOP

AZ100EL31 Applications

* that require the ultimate in AC performance. Both set and reset inputs are asynchronous, level triggered signals. Data enters the master section of the flipflop when the clock is LOW. When the clock transitions from LOW to HIGH, the data in the master section transfers into the slave section and thr

📥 Download Datasheet

Preview of AZ100EL31 PDF

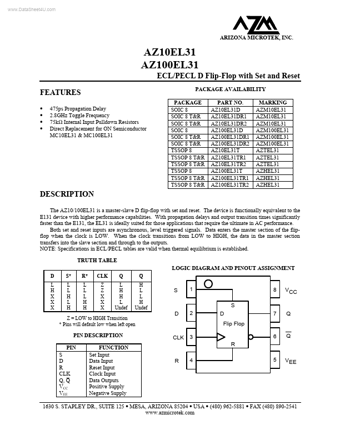

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ100EL31
Manufacturer
Arizona
File Size
167.56 KB
Datasheet
AZ100EL31_Arizona.pdf
Description
ECL/PECL D Flip-Flop
